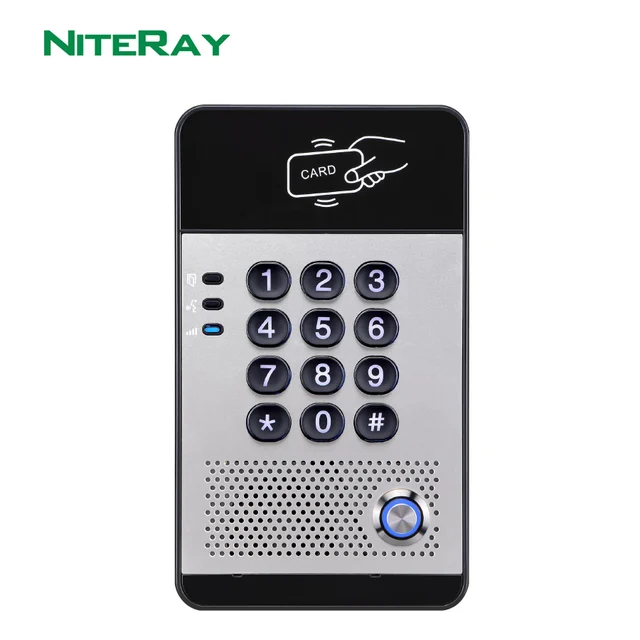

Cheap - High Quality PBX IP Door Phone SIP Intercom Door Phone With Doorbell Feature & Waterproof Numeric Keypad Wonderfull
Cheapest - High Quality PBX IP Door Phone SIP Intercom Door Phone With Doorbell Feature & Waterproof Numeric Keypad Cheap
Installation:
Wall Mounting
Waterproof:
Yes
Material:
Metal panel, ABS sump
Communication Interface:
Wired
Answering Mode:
Hands-free
Item Type:
Entrance Machine
Brand Name:
NiteRay
Samrt Home Interface:
No
Size:
160 x 93 x 35mm
Power:
12V/1A DC or PoE
Zone Number:
None
Model Number:
Q506
Access Control:
Inductive Card and Password
Item:
Sip Door Phone
Protocol:
SIP2.0
Access Control:
by call,by code,IC/RFID

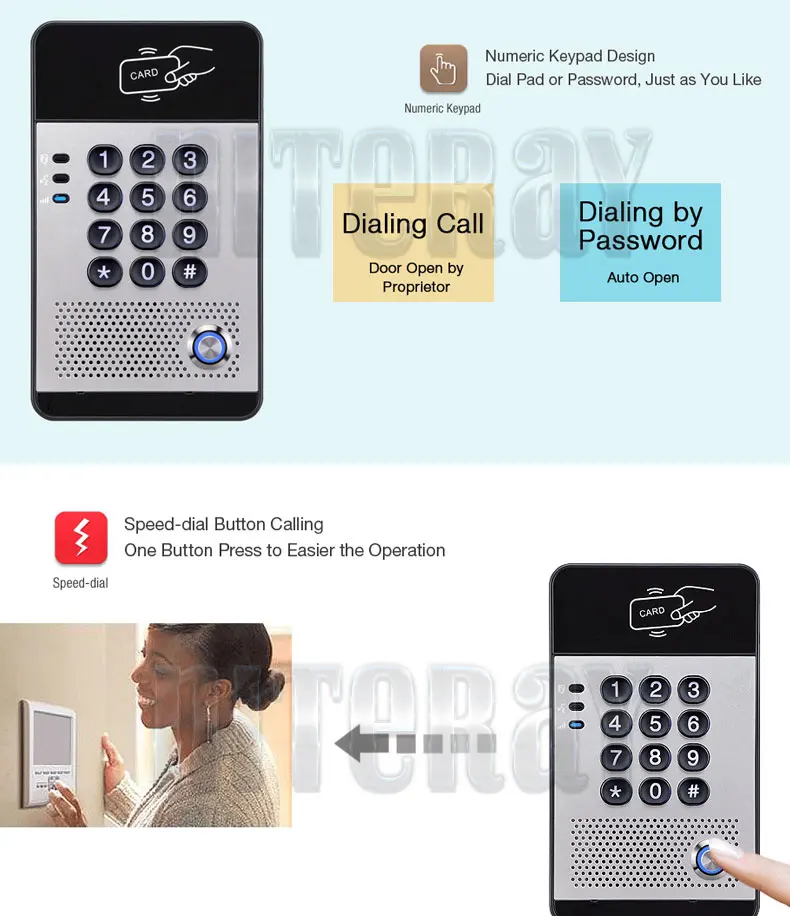

Numeric keypad:
Input Password or Dial Extension Number
WAN:
10/100BASE-Tx, Auto-MDIX, RJ-45
PoE:
802.3af(Class 3 - 6.49~12.95W)
Passive Switch(short-circuit output):
NC/NO Contacts, MAX 30V/1A AC/DC
RFID/IC Card:
EM4100 (125KHz)--Standard
Protection level:
IP54
Warranty:
1 Year

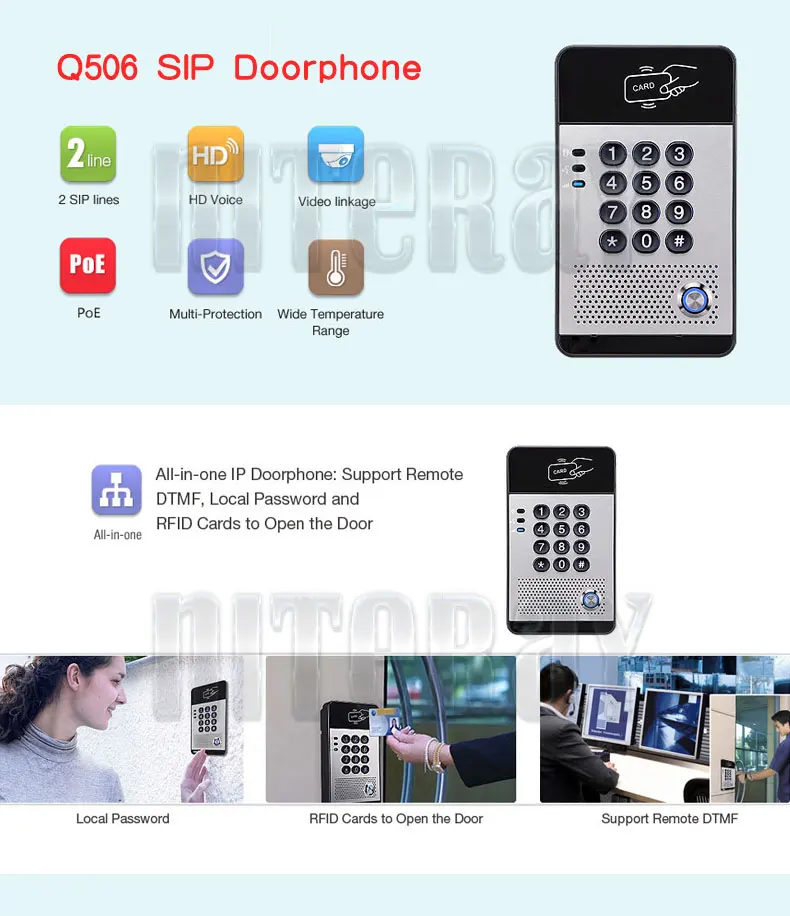

All-in-one IP Doorphone: Support Remote DTMF,Local Password and RFID Cards to Open the Door
The design of Q506 Sip Door phone are based on experience and knowledge of IP phone development. Q506 are using standard IP/RTP/RTSP protocol for voice transmission and enjoy the advantages of full range of compatibility.

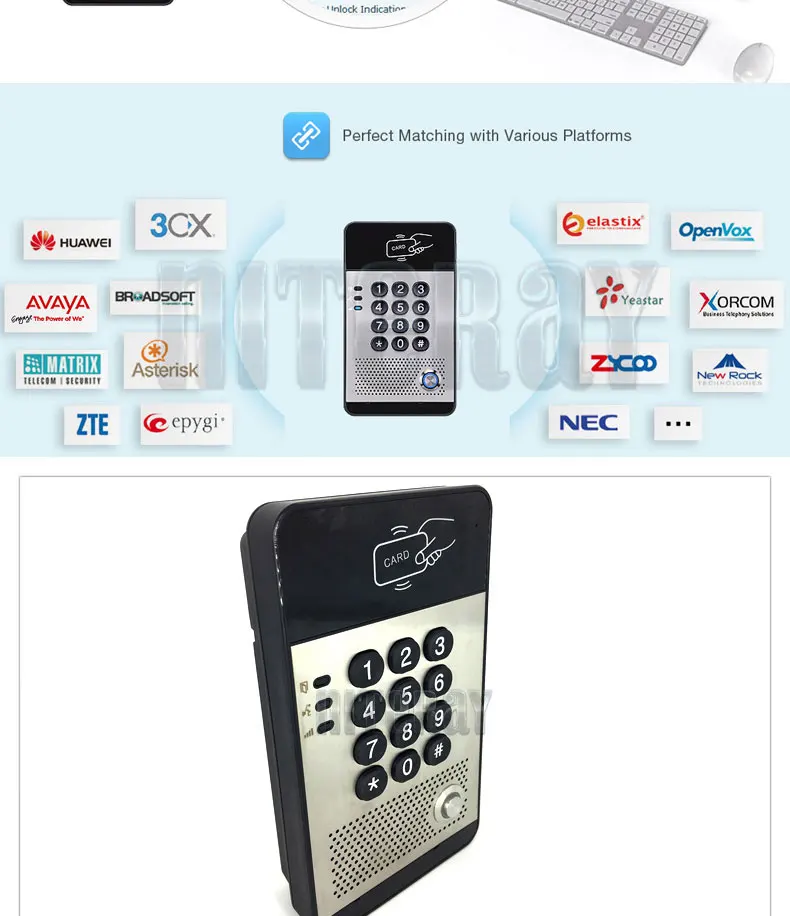

Q506 have a variety of enterprise-level features and compatible with lots of major platforms, such as 3CX, Asterisk, Broadsoft, Elastix, etc.
The Q506 SIP door phone is designed for operation in indoor conditions. The robust mechanical construction offers protective coverage rating against dust and water (IP54).
The Q506 is economical devices with triple function (All in 1)- Access control by call, code and RFID card.
Highlights
- Compatible with standard SIP(RFC3261) protocol and main IPPBX/IMS platform
- Access Control(by call,by code,IC/RFID)
- All-in-One(Access Control,Intercom and Broadcasting)
- Build-in 3W speaker and AEC,support high quality hand-free communication.
- Status indication icon

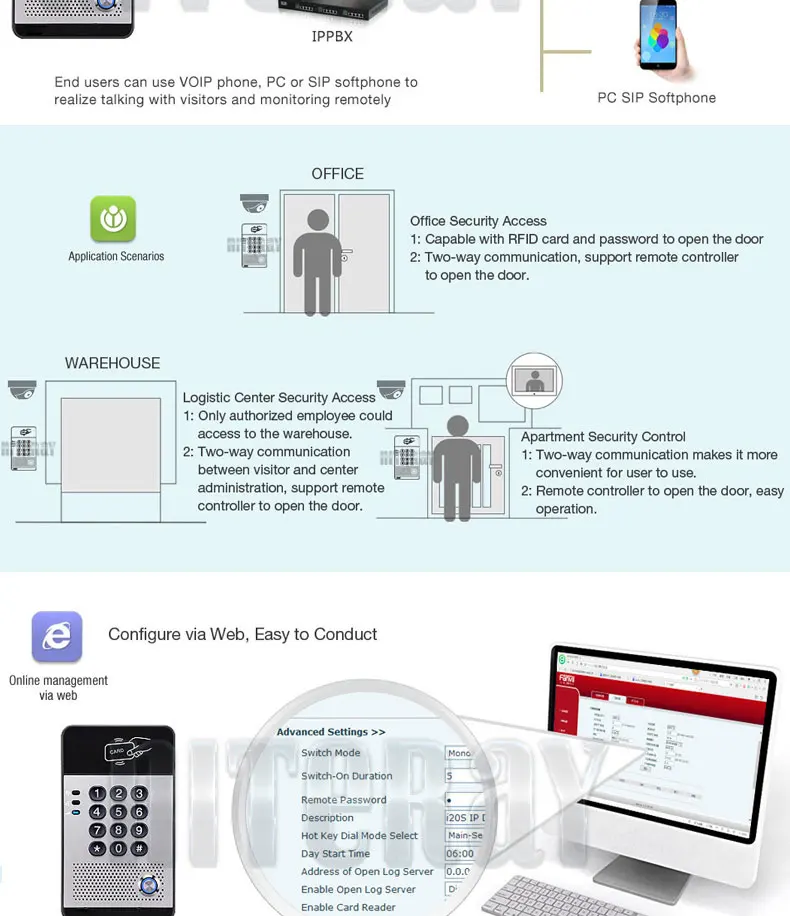

- System online maintenance and management
|
Main Features | |
| Call Features | Phone Features |
 Intercom | Call log (900 entries, in/out/missed) |
| Speed Dial | Open Door Log |
| Auto-Answering (per line) | Access Table (300 entries) |
| Voice Message (on server) | Support RFID Card issues (300 entries) |
| Local 3-way Conference | Programmable DSS/Soft keys |
| Hot Line | Network Time Synchronization |
| Action URL / Active URI | |
Specification
| Generic | Protocols |
| 2 SIP Lines | SIP2.0 over UDP/TCP/TLS |
| POE Enabled | RTP/RTCP/SRTP |
| Full-duplex speakerphone (HF) | STUN |
| Numeric keypad (Dial pad or Password input) | DHCP |
| Intelligent DSS Keys (Speed Dial) | PPPoE |
| Embedded installation | 802.1x |
| Integrated RFID Card reader | L2TP (Basic Unencrypted) |
| Integrated indoor switchgear | OpenVPN |
| Integrated one Relay | SNTP |
| External Power Supply | FTP/TFTP |
| Access control-by call, code, RFID card | HTTP/HTTPS |
| Industrial Standard Certifications: IP54,CE/FCC | TR069 |
| Call Features | RFCs: |
| Intercom | 354/1321/1350/1769/1889/1890/2131/ 2132/2616/2617/2661/2833/2976/3261/ 3262/3263/3264/3265/3268/3311/ 3489/3711/4346/4566/5630/5865 |
| Speed Dial | |
| Auto-Answering (per line) | |
| Voice Message (on server) | |
| Local 3-way Conference | |
| Hot Line | Deployment & Maintenance |
| Auto-Provisioning via | |
| Phone Features | FTP/TFTP/HTTP/HTTPS/DHCP/SIP PNP/TR069 |
| Call log (900 entries, in/out/missed) | Web Management Portal |
| Open Door Log | Web-based Packet Dump |
| Access Table (300 entries) | Configuration Backup/Restore |
| Support RFID Card issues (300 entries) | Open Door Export |
| Programmable DSS/Soft keys | Access Table Export/Import |
| Network Time Synchronization | Firmware Upgrade |
| Action URL / Active URI | Syslog (include Door log) |
| Audio | Physical Specifications |
| Narrowband CODEC: G.711a/u, G.723.1,G.726-32K, G.729AB | 1 DSS Key |
| Wideband CODEC: G.722 | Numeric keypad |
| Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length | WAN: 10/100BASE-Tx, Auto-MDIX，RJ-45 |
| RJ45 Ethernet Jacket x2: Network x1 | |
| Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) | (802.3AF POE Enabled), PC x1 |
| (Bridged to Network) | |
| Packet Loss Concealment (PLC) | PoE: 802.3af (Class 3 - 6.49~12.95W) 48V/380mA |
| Dynamic Adaptive Jitter Buffer up to 300ms | Main Chipset: Broadcom |

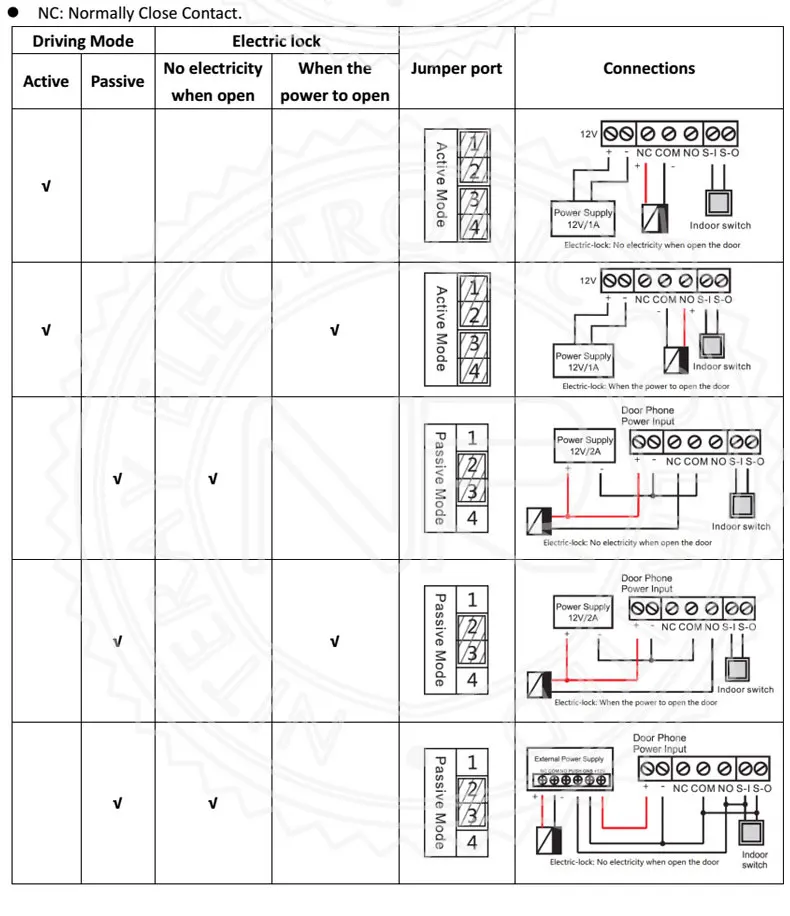

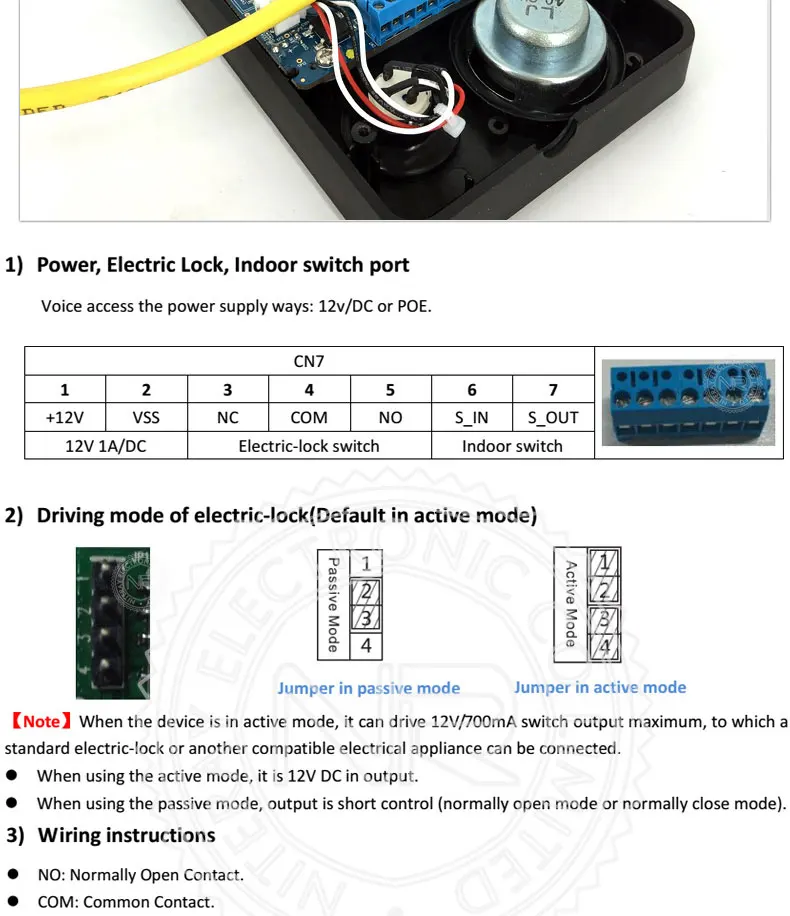

| DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO | Passive Switch(short-circuit output): NC/NO Contacts, MAX 30V/1A AC/DC |
| Networking | Active Switched Output: 12V/700mA DC |
| Physical: RJ45 Ethernet Jacket x2: Network x1 | Speaker: 4Ω/3W |
| (802.3AF POE Enabled), LAN x1 | Cables: CAT5 or better |
| (Bridged to Network) | Power Supply:12V+-15%/1A DC or PoE |
| IP Configuration: Static / DHCP / PPPoE | RFID/IC Card: EM-4100 /4100 (125KHz) |
| Network Access Control: 802.1x | Shell Material: Metal panel, ABS sump |
| VPN: L2TP (Basic Unencrypted) / OpenVPN | Protection level: IP54 |
| VLAN | Working Temperature: -10~60 degree |
| QoS | Storage Temperature: -40~70 degree |
| Working Humidity: 10~90% | |
| Overall Dimension: 160 x 93 x 35mm (W x H x L) | |
| Package Dimensions: 178x104x55mm (W x H x L) | |
| Package Weight: 0.6 KG |
